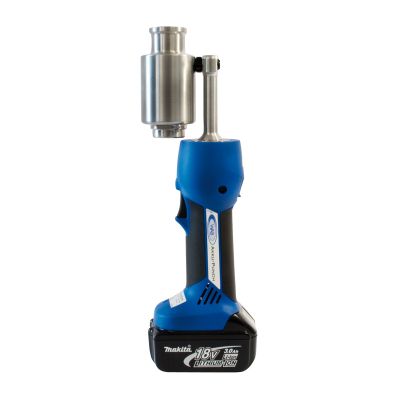

AKKU PUNCH Hydraulic Punch Driver

High-capacity Akku Hydraulic Punch Driver including lithium-ion battery. Hydrauliccylinder rotates for maximum flexibility. Easy handling and low weight of only 2 kg enable fatigue-free punching. When using WAB AKKU PUNCH, the hydraulic cylinder will not be bottomed out and knockout punches will not be damaged. The punching process is monitored electronically. When the punching process is complete, WAB AKKU PUNCH is switched off automatically.

Punching capacities (max. sheet thickness)

• up to ø 63,5 mm: 2,5 mm mild steel | 2,0 mm stainless steel

• up to 68,0 x 68,0 mm: 2,5 mm mild steel | 1,5 mm stainless steel

• up to 92,0 x 92,0 mm*: 2,0 mm mild steel | 1,5 mm stainless steel

• up to 138.0 x 138.0 mm*: 2.0 mm mild steel | not with stainless steel

* Size 92,0 x 92,0 mm to 138,0 x 138,0 mm only with original WAB Punches

Technical data:

• Weight: only 2 kg
• Punching capacity: 63 KN
• Battery voltage: 18V DC
• Battery capacity: 3Ah
• Battery charging time: 22 min
• Supplied in plastic case including WAB Knockout Punch Set POWER SPLIT (Slug Splitting Knockout Punches, three point design, for mild steel).

Scope of supply:

• 1 WAB AKKU PUNCH Hydraulic Punch Driver
• 1 lithium-ion battery 18V, 3Ah
• 1 battery charger
• 1 draw stud 9,5 x 19,0 mm (3/8” x 3/4” UNF)
• 1 draw stud 19,0 x 125,0 mm (3/4” x 125,0 mm UNF)
• 1 spacer
• 1 tube lubricant
• 1 HSS-Co Pilot Drill (Multi Step Drill)
• 1 each Knockout Punch M16 – M20 – M25 – M32 – PG16
• 1 plastic case

You can choose from the following products

• Art.No. 020014
  WAB AKKU PUNCH Hydraulic Punch Driver complete with accessories and
  1 each WAB POWER SPLIT Knockout Punch M16 – M20 – M25 – M32 – PG16

• Art.No. 020015
  Replacement battery Li-Ion. Akku 18V, 3Ah

• Art.No. 020017
  Replacement battery charger

• Art.No. 020018
  AKKU PUNCH without Knockout Punch Set

• Art.No. 020019
  AKKU PUNCH without Knockout Punch Set, battery and battery charger
