Knockout Punches

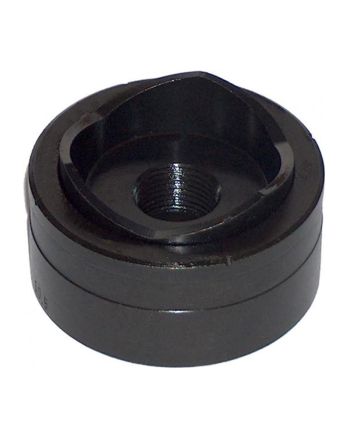

WAB Knockout Punches Standard Type metric

Use in manual operation: Please also order the appropriate ball bearing screw.

Other dimensions on request.

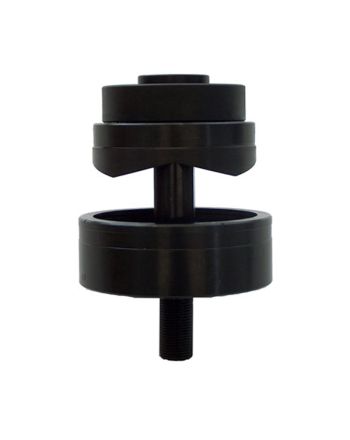

WAB Knockout Punches STANDARD Type for manual and hydraulic operation

For manual and hydraulic operation. Use in manual operation: Please also order the appropriate ball bearing screw.

From dimension 89.0 mm can only be operated hydraulically. Please also order the appropriate hydraulic screw.

Knockout Punches STANDARD Type PG

Use in manual operation: Please also order the appropriate ball bearing screw.

WAB POWER SPLIT Slug Splitting Knockout Punches, Three Point Design metric

Use in manual operation: Please also order the appropriate ball bearing screw.

WAB POWER SPLIT Slug Splitting Knockout Punches, Three Point Design

Use in manual operation: Please also order the appropriate ball bearing screw.

WAB POWER SPLIT Slug Splitting Knockout Punches, Three Point Design PG

Use in manual operation: Please also order the appropriate ball bearing screw.

WAB POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design metric

Use in manual operation: Please also order the appropriate ball bearing screw.

For working with our WAB POWER SPLIT PLUS Knockout Punches for stainless steel, we recommend using a hydraulic pump (e.g. WAB POWER PUNCH).

Working with a ball bearing screw is possible, but not recommended.

WAB POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design for stainless steel

Use in manual operation: Please also order the appropriate ball bearing screw.

For working with our WAB POWER SPLIT PLUS Knockout Punches for stainless steel, we recommend using a hydraulic pump (e.g. WAB POWER PUNCH).

Working with a ball bearing screw is possible, but not recommended.

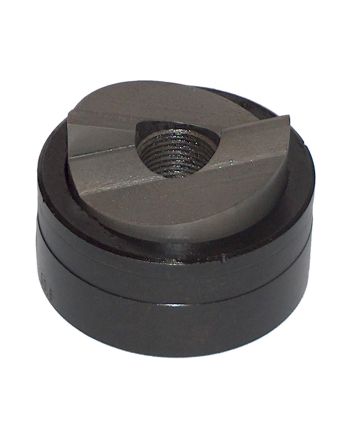

WAB POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design PG
for stainless steel

Use in manual operation: Please also order the appropriate ball bearing screw.

For working with our WAB POWER SPLIT PLUS Knockout Punches for stainless steel, we recommend using a hydraulic pump (e.g. WAB POWER PUNCH).

Working with a ball bearing screw is possible, but not recommended.

WAB Square Punches for Mild Steel

SKU 010244 and SKU 010222 delivery without case

WAB Square Punches for Stainless Steel

** = with 4 Centre Punches

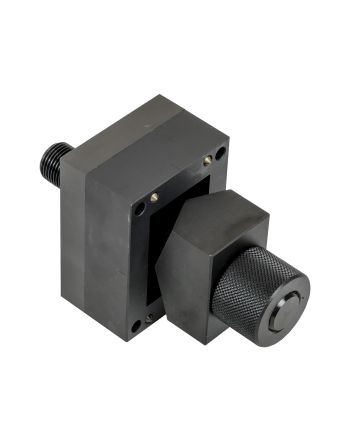

WAB Rectangular Punches for Heavy PLUG Connectors and Cable Bushings with integrated Centre Punches

Punch for hydraulic use only.

  * = 2 Centre Punches
** = 4 Centre Punches

  R = Punch with 4 corner radii

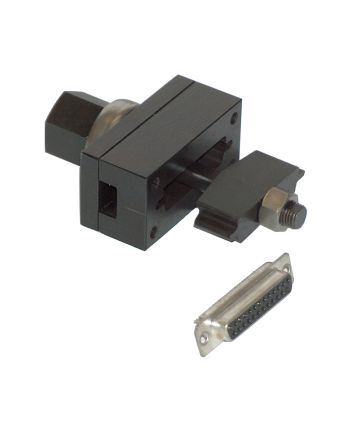

WAB Electronic Connector Panel Punches MIN D

Max. mild steel sheet thickness: 2,0 mm

WAB Special Punches for Manual and Hydraulic Operation

* = All knockout punch up to 2 mm material thickness. Other material thickness on request.

** = Knockout punch for stainless steel up to max. 1,5 mm material thickness. Only for hydraulic use!

WAB Punches for Electronical Applications - for Mild Steel

R* = Punch with 4 corner radii

WAB HSS Co5 Multi Step Drill, spiral flute for drilling of pilot holes for punches.
