Blechlocher Zweischneider-Spaltstempel-Blechlocher, PG

POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design PG

Delivery Time

1-3 Werktage

WAB POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design PG
for stainless steel

Use in manual operation: Please also order the appropriate ball bearing screw.

For working with our WAB POWER SPLIT PLUS Knockout Punches for stainless steel, we recommend using a hydraulic pump (e.g. WAB POWER PUNCH).

Working with a ball bearing screw is possible, but not recommended.

Grouped product items
SKU	Size	Thread in mm	for Stainless Steel	Delivery Time	Excl. Tax	Incl. Tax
014012	15,2 PG9	11,1	Yes	1-3 Business Days	€72.40	€86.16
014030	18,6 PG11	11,1	Yes	1-3 Business Days	€74.65	€88.83
014036	20,4 M20	11,1	Yes	1-3 Business Days	€71.25	€84.79
014042	22,5 PG16	11,1	Yes	1-3 Business Days	€73.70	€87.70
014062	28,3 PG21	19,0	Yes	1-3 Business Days	€84.00	€99.96
014096	37,0 PG29	19,0	Yes	1-3 Business Days	€98.00	€116.62
014128	47,0 PG36	19,0	Yes	1-3 Business Days	€130.35	€155.12
014146	54,0 PG42	19,0	Yes	1-3 Business Days	€155.00	€184.45
014154	60,0 PG48	19,0	Yes	1-3 Business Days	€147.25	€175.23

Starting at €84.79 €71.25

excl. Shipping Cost

Product Details

Description

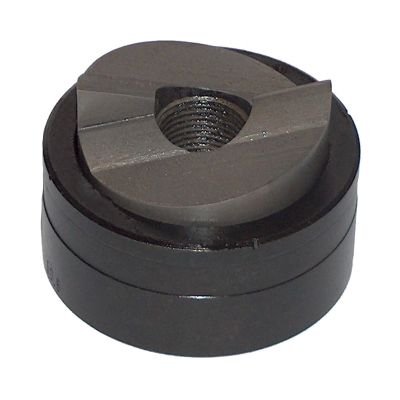

This Knockout Punch for stainless steel splits slugs in 2 pieces. In this way, slugs fall free and will not cling.

Max. stainless steel sheet thickness

With use of draw stud 11,1 mm (7/16” UNF) 2,0 mm sheet thickness
With use of draw stud 19,0 mm (3/4” UNF) 2,5 mm sheet thickness

For manual and hydraulic operation. Use of a Hand Hydraulic Punch Driver (e.g.WAB POWER PUNCH) is recommended. Use of ball-bearing draw studs is possible but not recommended. High alloy special steel and thermal treatment guarantee long lifetime.

Scope of supply:
Punch and die (without draw stud)
