Blechlochedr Dreischneider-Spaltstempel-Blechlocher, metrisch

POWER SPLIT Slug Splitting Knockout Punches, Three Point Design metric

Delivery Time

1-3 Werktage

WAB POWER SPLIT Slug Splitting Knockout Punches, Three Point Design metric

Use in manual operation: Please also order the appropriate ball bearing screw.

Grouped product items
SKU	Size	Thread in mm	for Stainless Steel	Delivery Time	Excl. Tax	Incl. Tax
013018	16,2 M16	9,5	-	1-3 Business Days	€28.30	€33.68
013036	20,4 M20	9,5	-	1-3 Business Days	€28.20	€33.56
013052	25,4 M25	9,5	-	1-3 Business Days	€34.50	€41.06
013085	32,5 M32	19,0	-	1-3 Business Days	€42.00	€49.98
013108	40,5 M40	19,0	-	1-3 Business Days	€46.65	€55.51
013138	50,5 M50	19,0	-	1-3 Business Days	€81.50	€96.99
013160	63,5 M63	19,0	-	1-3 Business Days	€97.00	€115.43
070035	12,5 M12	special drill	Yes	1-3 Business Days	€10.15	€12.08

Starting at €12.08 €10.15

excl. Shipping Cost

Product Details

Description

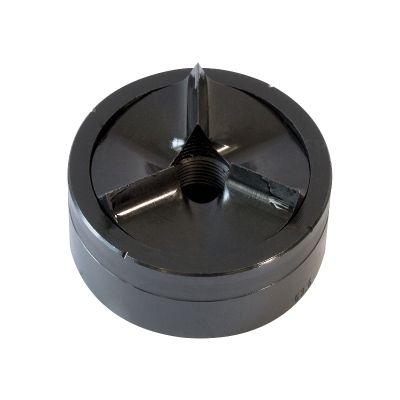

This Knockout Punch for mild steel splits slugs in 3 pieces. In this way, slugs fall free and will not cling.

Max. mild steel sheet thickness

With use of draw stud 9,5 mm (3/8” UNF) 2,0 mm sheet thickness
With use of draw stud 19,0 mm (3/4” UNF) 2,5 mm sheet thickness

For manual and hydraulic operation.

The special POWER SPLIT punch geometry allows to work at reduced punching force, especially when using ball-bearing draw studs. When operating with Hand Hydraulic Punch Drivers (e.g. WAB POWER PUNCH), the reduced punching force results in decompressed sealing gaskets.

Scope of supply:
Punch and die (without draw stud)
