Blechlocher Zwischenmaße für Hand- und Hydraulikbetätigung Lochknacker

Knockout Punches STANDARD Type for manual and hydraulic operation

Delivery Time

1-3 Werktage

Other dimensions on request.

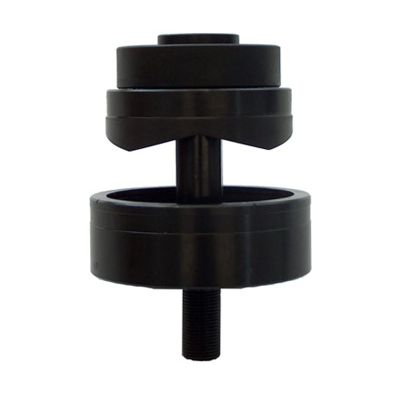

WAB Knockout Punches STANDARD Type for manual and hydraulic operation

For manual and hydraulic operation. Use in manual operation: Please also order the appropriate ball bearing screw.

From dimension 89.0 mm can only be operated hydraulically. Please also order the appropriate hydraulic screw.

Grouped product items
SKU	Size	Thread in mm	Delivery Time	Excl. Tax	Incl. Tax
010033	19,0 mm	9,5	2-3 Business Days	€26.00	€30.94
010035	20,0 mm	9,5	2-3 Business Days	€26.10	€31.06
010041	22,0 mm	9,5	2-3 Business Days	€27.95	€33.26
010051	25,0 mm	9,5	2-3 Business Days	€28.35	€33.74
010057	30,1 mm	9,5	2-3 Business Days	€32.30	€38.44
010075	30,5 mm	9,5	2-3 Business Days	€34.00	€40.46
010077	30,1 mm	19,0	2-3 Business Days	€33.00	€39.27
010079	31,7 mm	9,5	2-3 Business Days	€35.00	€41.65
010093	35,0 mm	19,0	2-3 Business Days	€35.60	€42.36
010101	38,0 mm	19,0	2-3 Business Days	€48.00	€57.12
010121	42,8 mm	19,0	2-3 Business Days	€58.50	€69.62
010122	43,2 mm	19,0	2-3 Business Days	€59.75	€71.10
010123	44,4 mm	19,0	2-3 Business Days	€61.45	€73.13
010161	68,0 mm	19,0	1-3 Business Days	€151.00	€179.69
010165	70,0 mm	19,0	1-3 Business Days	€167.00	€198.73
010169	76,2 mm	19,0	1-3 Business Days	€171.50	€204.09
010173	80,0 mm	19,0	1-3 Business Days	€207.00	€246.33
010177	82,0 mm	19,0	1-3 Business Days	€208.00	€247.52
010178	89,0 mm*	M24	2-3 Business Days	€258.20	€307.26
010179	92,0 mm*	M24	2-3 Business Days	€275.00	€327.25
010198	100,5 mm*	M24	2-3 Business Days	€316.00	€376.04
010199	115,5 mm*	M24	2-3 Business Days	€365.00	€434.35
010200	120,0 mm*	M24	2-3 Business Days	€401.40	€477.67
010201	116,0 mm*	M24	2-3 Business Days	€367.00	€436.73

Starting at €30.94 €26.00

excl. Shipping Cost

Product Details

Description

Max. mild steel sheet thickness

With use of draw stud 9,5 mm (3/8” UNF) 2,0 mm sheet thickness
With use of draw stud 19,0 mm (3/4” UNF) 2,5 mm sheet thickness

Thicker sheet metal is possible, however this will reduce lifetime of punches and draw studs.

For manual and hydraulic operation. Draw studs must be greased when operated manually. We recommend using WAB Lubricant (Art.No. 040001 or 040002).

*Sizes above 89,0 mm cannot be operated manually. We recommend use of WAB POWER PUNCH, WAB AKKU PUNCH Driver, WAB Ram and Foot Pump Hydraulic Driver. Please also order the appropriate ball bearing screw.

WAB POWER PUNCH Art.No. 021016

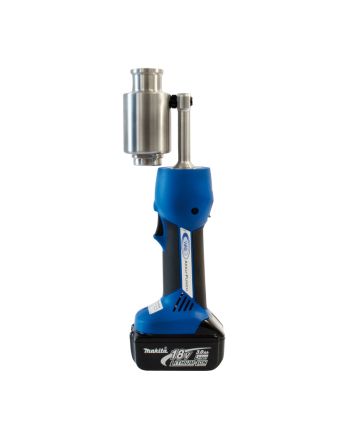

WAB AKKU PUNCH Driver Art.No. 020018

WAB Ram and Foot Pump Hydraulic Driver Art.No. 020028

Required accessories

Special draw stud M24 x1,5|3/4”-130 mm Art.No. 020003

Scope of supply:

Punch and die (without draw stud)
