Blechlocher Zweipunkt-Blechlocher für VA-Material Spaltstempel

POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design metric

Delivery Time

1-3 Werktage

WAB POWER SPLIT PLUS Slug Splitting Knockout Punches, Two Point Design metric

Use in manual operation: Please also order the appropriate ball bearing screw.

For working with our WAB POWER SPLIT PLUS Knockout Punches for stainless steel, we recommend using a hydraulic pump (e.g. WAB POWER PUNCH).

Working with a ball bearing screw is possible, but not recommended.

Grouped product items
SKU	Size	Thread in mm	for Stainless Steel	Delivery Time	Excl. Tax	Incl. Tax
014018	16,2 M16	11,1	Yes	1-3 Business Days	€69.95	€83.24
014036	20,4 M20	11,1	Yes	1-3 Business Days	€71.25	€84.79
014052	25,4 M25	11,1	Yes	1-3 Business Days	€75.75	€90.14
014085	32,5 M32	19,0	Yes	1-3 Business Days	€79.50	€94.61
014108	40,5 M40	19,0	Yes	1-3 Business Days	€93.30	€111.03
014138	50,5 M50	19,0	Yes	1-3 Business Days	€122.00	€145.18
014160	63,5 M63	19,0	Yes	1-3 Business Days	€145.50	€173.15
070035	12,5 M12	special drill	Yes	1-3 Business Days	€10.15	€12.08

Starting at €12.08 €10.15

excl. Shipping Cost

Product Details

Description

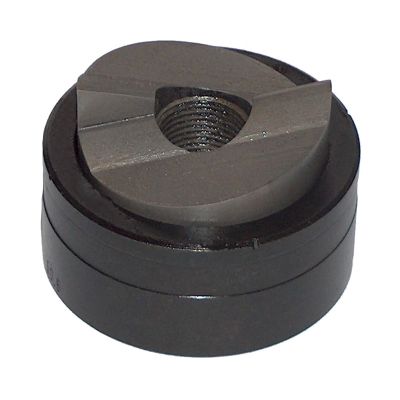

This Knockout Punch for stainless steel splits slugs in 2 pieces. In this way, slugs fall free and will not cling.

Max. stainless steel sheet thickness

With use of draw stud 11,1 mm (7/16” UNF) 2,0 mm sheet thickness
With use of draw stud 19,0 mm (3/4” UNF) 2,5 mm sheet thickness

For manual and hydraulic operation. Use of a Hand Hydraulic Punch Driver (e.g.WAB POWER PUNCH) is recommended. Use of ball-bearing draw studs is possible but not recommended. High alloy special steel and thermal treatment guarantee long lifetime.

Scope of supply:
Punch and die (without draw stud)
